senolux^® LWS

Light wall systems

senolux^® LWS consists of a sophisticated aluminium profile system combined with robust PC glazing panels.

You can download the senolux® LWS product folder here.

senolux® LWS folder

Characteristics

• Low weight
• Easy installation
• Good thermal insulation
• Universal application

Applications

• Roof and wall glazing
• Facade elements
• Industrial hall glazing
• Sports hall and tennis hall glazing

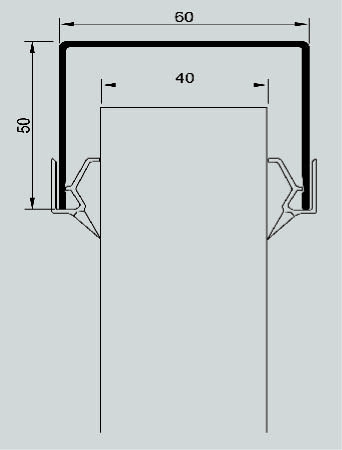

senolux® LWS 60 UP profile outer frame: Description Information
UP 60-50 frame profile
Length: 6000 mm
Width: 60 mm
Height: 50 and 90 mm
Description Length Width Height
UP 60-50 frame profile 6000 mm 60 mm 50 and 90 mm

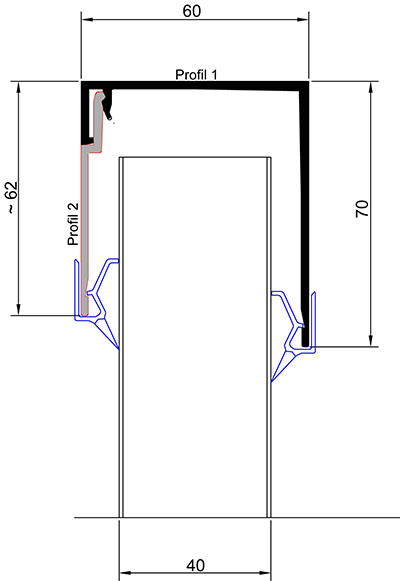

senolux® LWS 60 UP/VF 70 frame, curtain wall, roof glazing: Description Information
UP 60 outer frame
Length: 6000 mm
Width: 60 mm
Height: 75 mm
Description Length Width Height
UP 60 outer frame 6000 mm 60 mm 75 mm

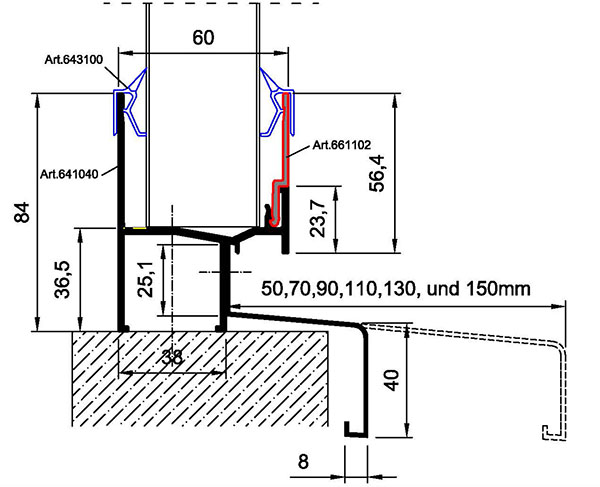

senolux® LWS 60 FP 60-0 base profile: Description Information
FP 60-0 base profile
Length: 6000 mm
Width: 60 mm
Height: 32 mm
Description Length Width Height
FP 60-0 base profile 6000 mm 60 mm 32 mm

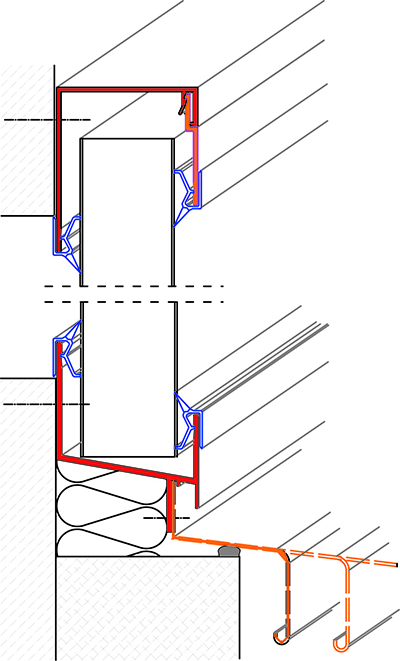

senolux® LWS 60-80 FP-VF base profile for curtain wall: Description Information
VF base profile
Length: 6000 mm
Width: 60 mm
Height: 80 mm
Description Length Width Height
VF base profile 6000 mm 60 mm 80 mm

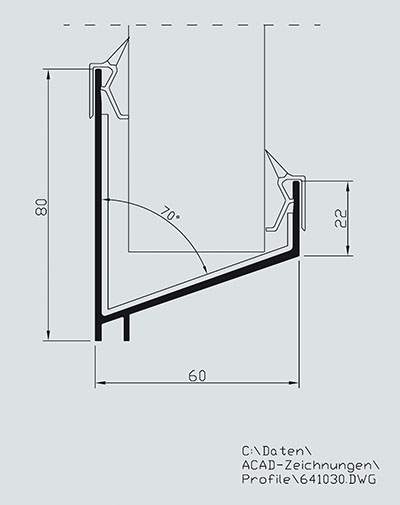

senolux® LWS FP-D base profile for roof glazing: Description Information
FP D base profile
Length: 6000 mm
Width: 60 mm
Height: 80 mm
Description Length Width Height
FP D base profile 6000 mm 60 mm 80 mm

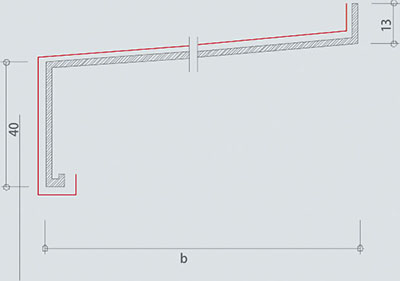

senolux® LWS 60 FB window sills for hanging: Description Information
FB 50 Window sill
Length: 6000 mm
Width: 50 mm
Height: 18 mm
FB 90 Window sill
Length: 6000 mm
Width: 90 mm
Height: 18 mm
FB 130 Window sill
Length: 6000 mm
Width: 130 mm
Height: 18 mm
Description Length Width Height
FB 50 Window sill 6000 mm 50 mm 18 mm
FB 90 Window sill 6000 mm 90 mm 18 mm
FB 130 Window sill 6000 mm 130 mm 18 mm

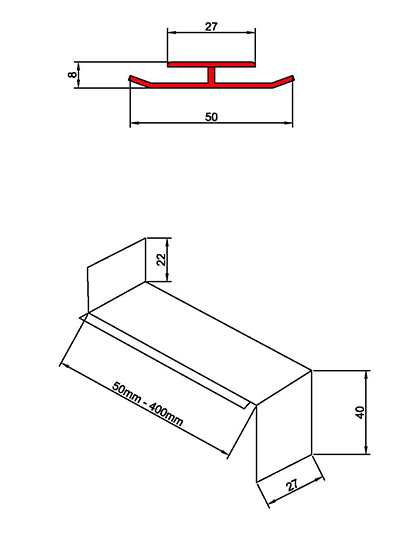

senolux® LWS butt connector weatherboard: Joint connector weather bar up to 180 mm

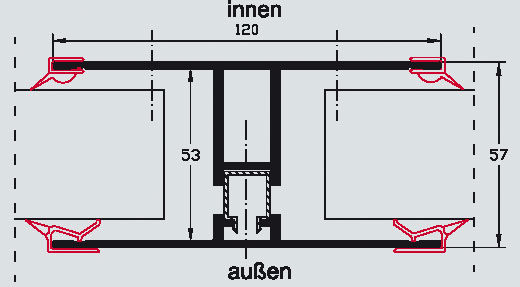

senolux® LWS 60 H Reinforcing H-bar, thermally separated: Description Information
H Reinforcing H-bar
Length: 6000 mm
Width: 120 mm
Height: 57 mm
Description Length Width Height
H Reinforcing H-bar 6000 mm 120 mm 57 mm
Use PVC clamping strip 8 mm at the bottom (inside and outside) and PVC clamping strip 5 mm at the top (inside and outside).

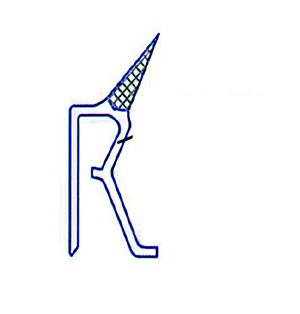

senolux® LWS 60 PL PVC clamping strips: Description Information
PL 8 PVC Clamping strips
Length: 3000 mm
Colour: grey
PL 5 PVC Clamping strips
Length: 3000 mm
Colour: grey
Description Length Colour
PL 8 PVC Clamping strips 3000 mm grey
PL 5 PVC Clamping strips 3000 mm grey
PL 8 clamping strips for all base profiles and outer frames. PL 5 clamping strips only for H-bar profile at the top.
senolux® LWS 60 VA suction anchors: Description Information
VA standard suction anchors – stainless steel
Description
VA standard suction anchors – stainless steel
Additional delivery programme: flat suction anchors – aluminium.

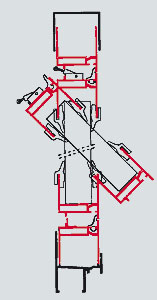

senolux® LWS 60 Wings for panels: Description Information
Ventilation swing wing LSF-PA 40
Width: 655 mm
Height: 655 mm
Ventilation swing wing LSF-PA 40
Width: 955 mm
Height: 955 mm
Ventilation swing wing LSF-PA 40
Width: 955 mm
Height: 1200 mm
Ventilation swing wing LSF-PA 40
Width: 1050 mm
Height: 1050 mm
Ventilation swing wing LSF-PA 40
Width: 1050 mm
Height: 1200 mm
Description Width Height
Ventilation swing wing LSF-PA 40 655 mm 655 mm
Ventilation swing wing LSF-PA 40 955 mm 955 mm
Ventilation swing wing LSF-PA 40 955 mm 1200 mm
Ventilation swing wing LSF-PA 40 1050 mm 1050 mm
Ventilation swing wing LSF-PA 40 1050 mm 1200 mm
LSF-PA 40 designed for 40 mm panels, with removable upper wing spar, standard for wet glazing with silicone. Further standard dimensions and special designs available on request.
